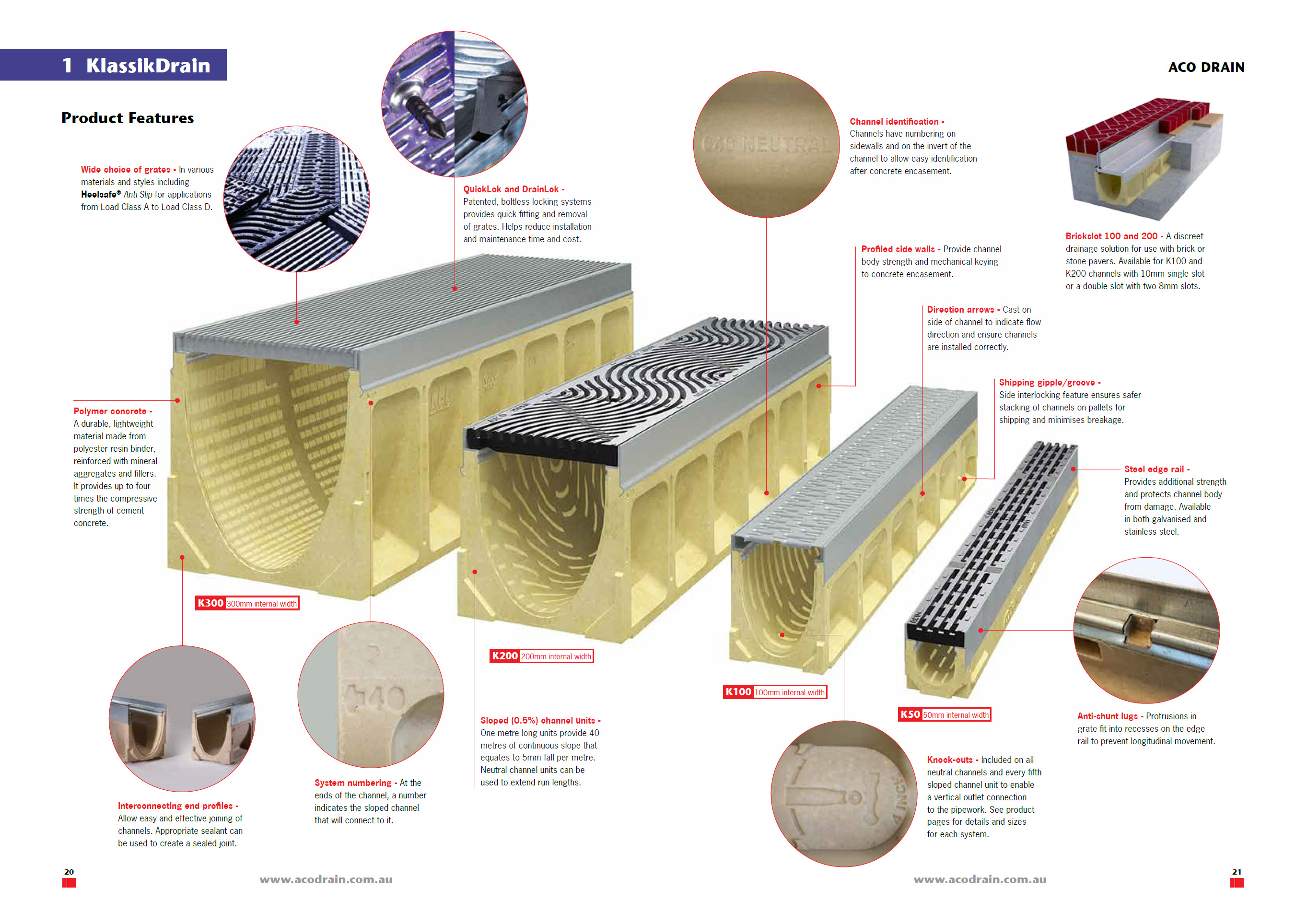

KlassikDrain with removable lockable grates
General purpose trench drain system available in 50mm (K50), 100mm (K100), 200mm (K200) and 300mm (K300) internal width with either galvanised or stainless steel edge rail.
All systems have 40 metres continuous slope. Grates are fastened with easy to use QuickLok & DrainLok boltless mechanisms.
KlassikDrain - product details
Summary of grates
| Heelsafe® Anti-Slip range | Product Name | Available widths | Compliance |
|---|---|---|---|

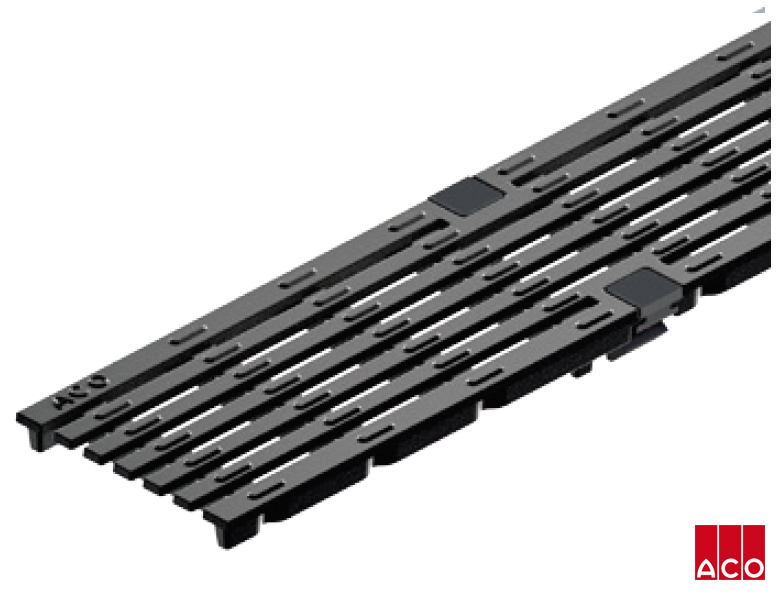

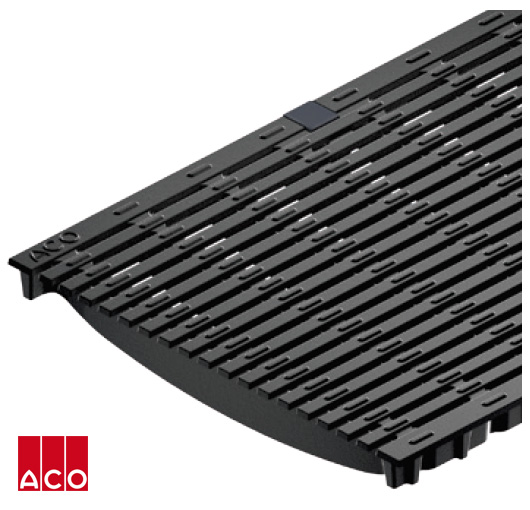

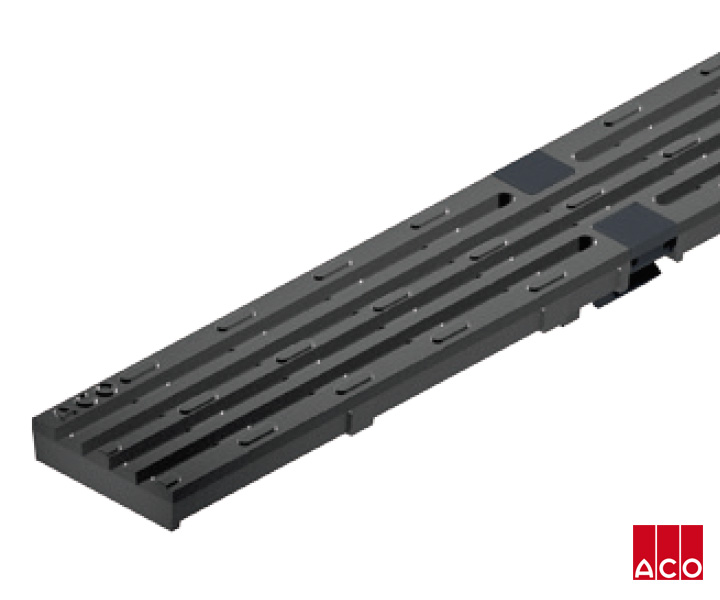

 | Iron Intercept | 50mm 100mm 200mm 300mm |     |
| • Slip rated to AS 4586: P3 wet pendulum, R10/R101 oil-wet inclining platform test • Narrow 7mm slot for heel safety • Compliant to AS 1428.1 Clause 4.4 (c) • Load rated to Class D (AS 3996) | |||

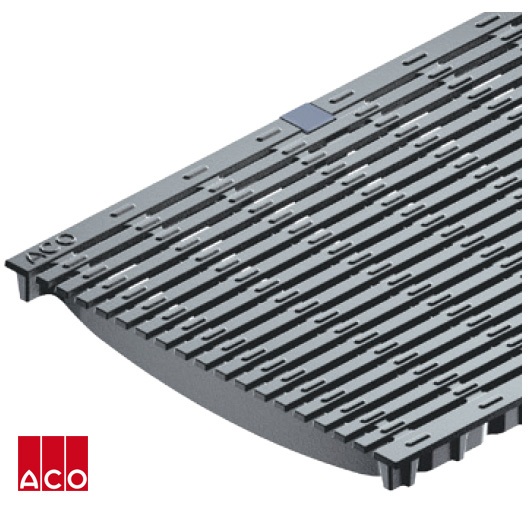

 | Iron Galvanised Intercept | 100mm 200mm 300mm |     |
| • Slip rated to AS 4586: P4 wet pendulum, R10/R101 oil-wet inclining platform test • Narrow 7mm slot for heel safety • Compliant to AS 1428.1 Clause 4.4 (c) • Load rated to Class D (AS 3996) | |||

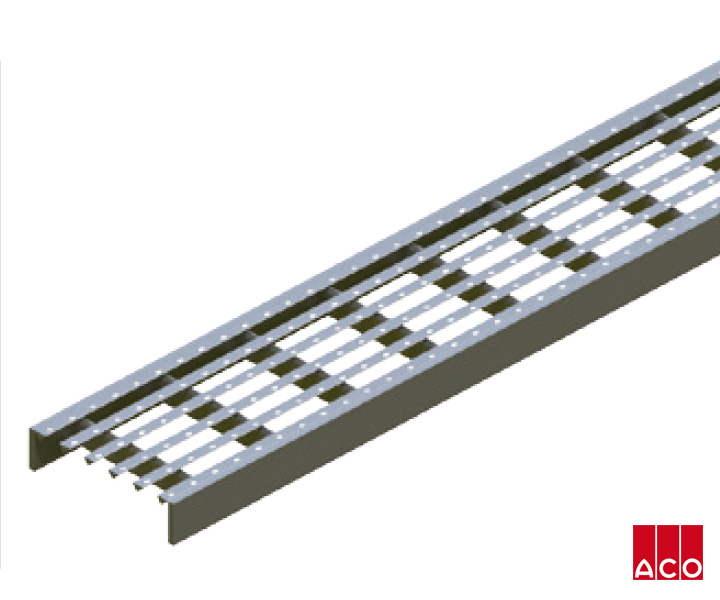

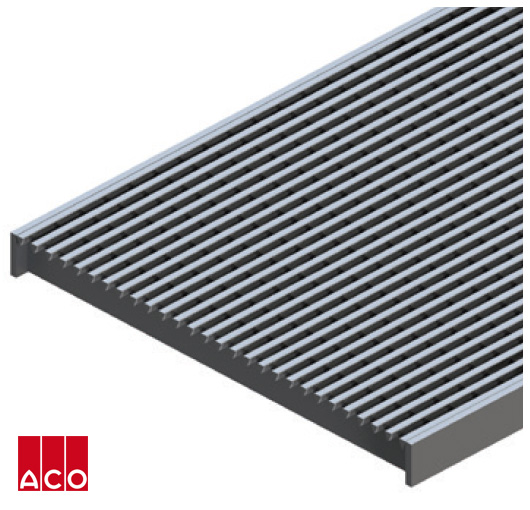

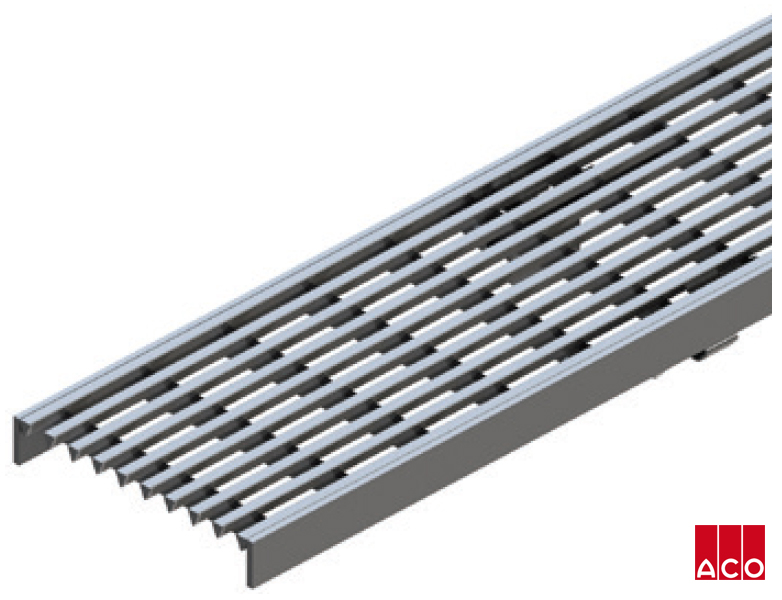

 | Stainless 5 Star | 50mm 100mm 200mm 300mm |     |
| • Slip rated to AS 4586: P4 wet pendulum, C/C1 wet-barefoot, R11/R111 oil-wet inclining platform test • Narrow 6mm slot for heel safety • Compliant to AS 1428.1 Clause 4.4 (c) • Load rated to Class B (AS 3996) | |||

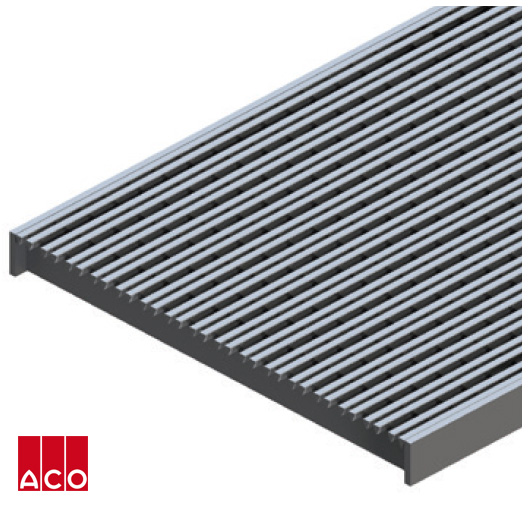

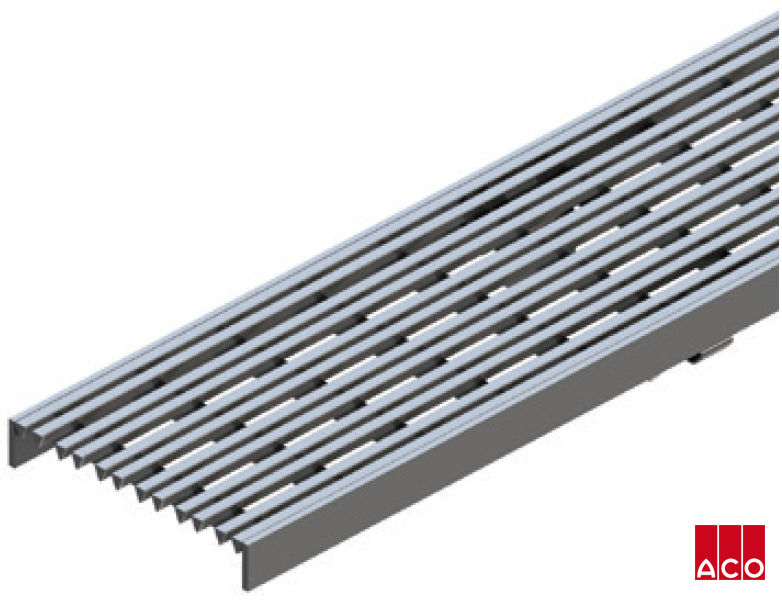

 | Stainless Splitwire | 100mm 200mm 300mm |     |
| • Slip rated to AS 4586: P5 wet pendulum, C/C1 wet-barefoot, R11/R111 oil-wet inclining platform test • Maximum 6mm slot width for heel safety • Compliant to AS 1428.1 Clause 4.4 (c) • Load rated to Class B (AS 3996) | |||

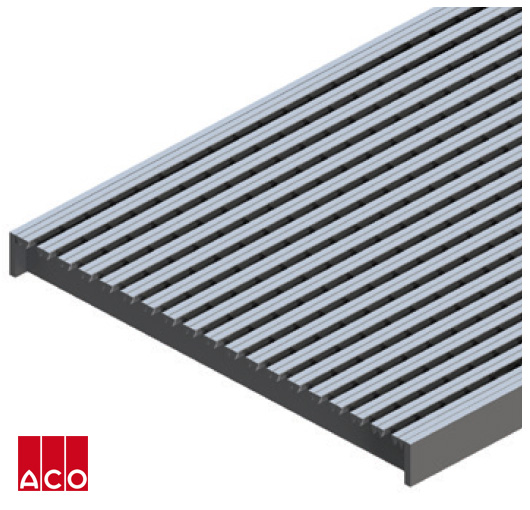

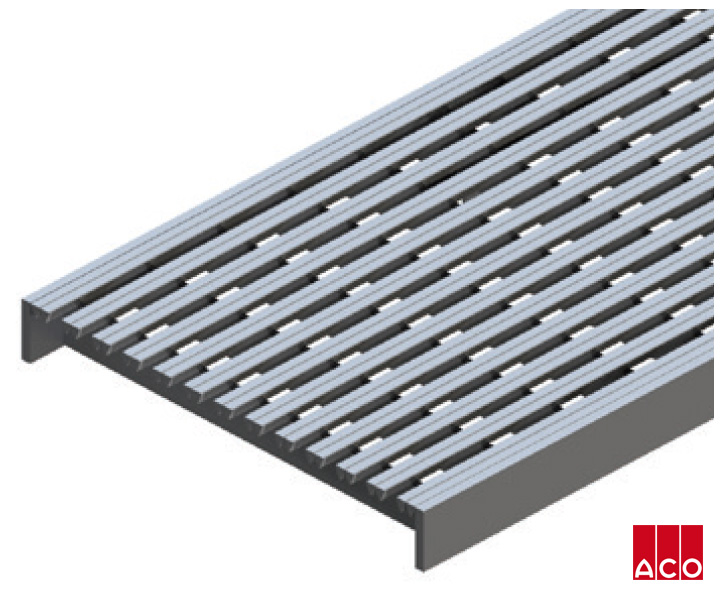

 | Stainless Twinwire | 100mm 200mm 300mm |     |
| • Slip rated to AS 4586: P5 wet pendulum, C/C1 wet-barefoot, R12/R121 oil-wet inclining platform test • Maximum 6mm slot width for heel safety • Compliant to AS 1428.1 Clause 4.4 (c) • Load rated to Class B (AS 3996) | |||

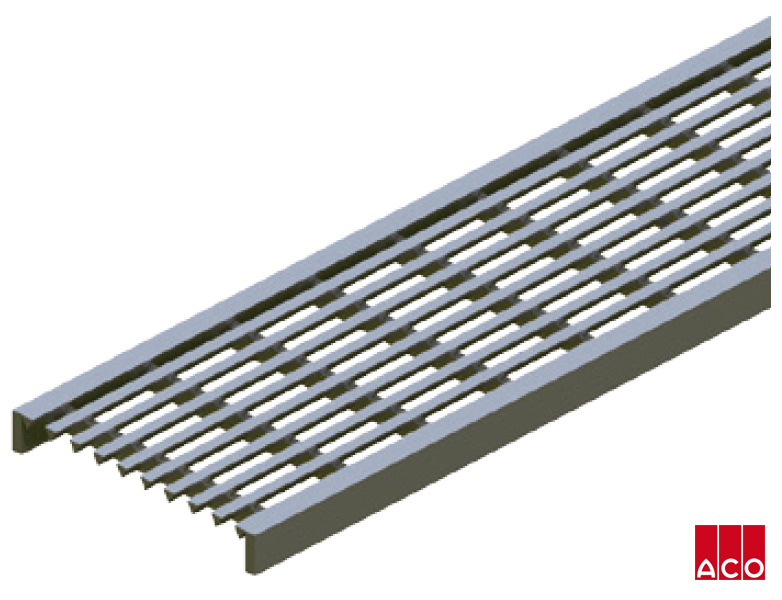

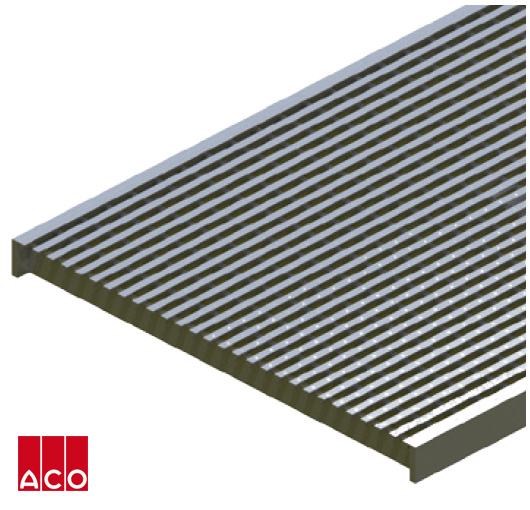

 | Stainless Wedgewire | 100mm 200mm 300mm |     |
| • Slip rated to AS 4586: P3 wet pendulum, C/B1 wet-barefoot, R10/R101 oil-wet inclining platform test • Narrow 6mm slot for heel safety • Compliant to AS 1428.1 Clause 4.4 (c) • Load rated to Class B (AS 3996) | |||
 | Plastic Slotted | 100mm |     |
| • Slip rated to AS 4586: P5 wet pendulum, C/C1 wet-barefoot, R12/R131 oil-wet inclining platform test • Narrow 8mm slot for heel safety • Compliant to AS 1428.1 Clause 4.4 (b) with the dominant direction of travel parallel to the grate’s length • Load rated to Class D (AS 3996) | |||
 | Plastic Intercept | 100mm |     |
| • Slip rated to AS 4586: P4 wet pendulum, C/B1 wet-barefoot, R9/R101 oil-wet inclining platform test • 9mm slot for heel safety • Compliant to AS 1428.1 Clause 4.4 (c) with the dominant direction of travel perpendicular to the grate’s length • Load rated to Class A (AS 3996) | |||
 | Stainless Longitudinal | 100mm 200mm 300mm |     |
| • Slip rated to AS 4586: P5 wet pendulum • Narrow 7mm slot for heel safety • Compliant to AS 1428.1 Clause 4.4 (b) with the dominant direction of travel perpendicular to the grate’s length • Load rated to Class D (AS 3996) | |||
 | Galvanised Longitudinal | 100mm |     |
| • Slip rated to AS 4586: P3 wet pendulum and R10/R121 oil-wet inclining platform test • Narrow 8mm slot for heel safety • Compliant to AS 1428.1 Clause 4.4 (b) with the dominant direction of travel perpendicular to the grate’s length • Load rated to Class B (AS 3996) | |||

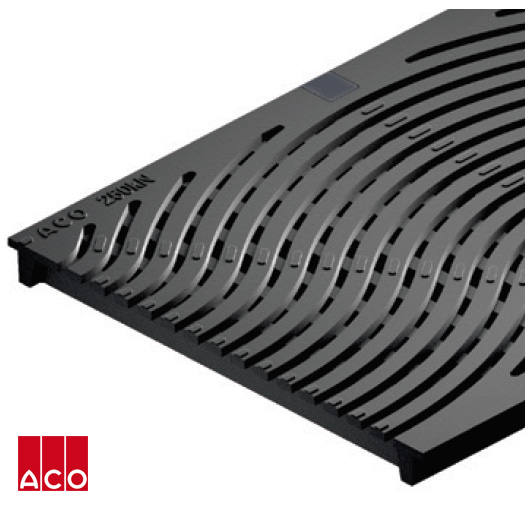

 | Iron Wave | 100mm 200mm 300mm |     |
| • Slip rated to AS 4586: P4 wet pendulum, R10 oil-wet inclining platform test • Narrow 7mm slot for heel safety • Compliant to AS 1428.1 Clause 4.4 (b) • Load rated to Class D (AS 3996) | |||
1 Test direction (perpendicular/parallel) relative to the grate’s length
| Larger Inlet grates | Product Name | Available widths | Compliance |
|---|---|---|---|

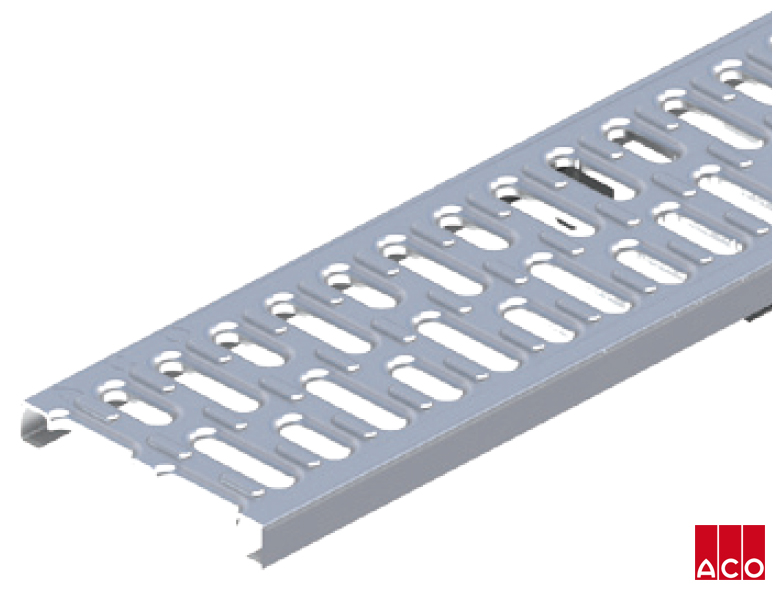

 | Steel slotted | 100mm |    |
| • Alternate slots making a lazy S pattern • Wide slotted openings • Compliant to AS 1428.1 Clause 4.4 (b) with the dominant direction of travel parallel to the grate’s length • Load rated to Class A & D (AS 3996) | |||

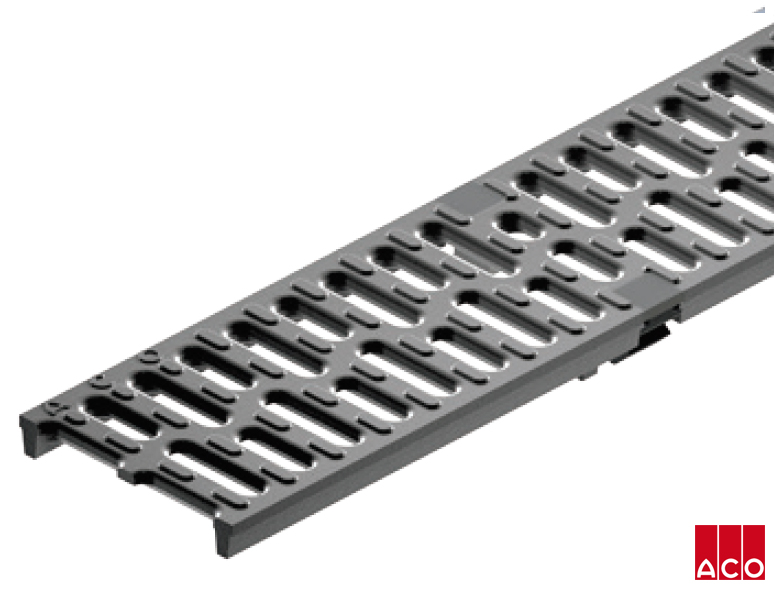

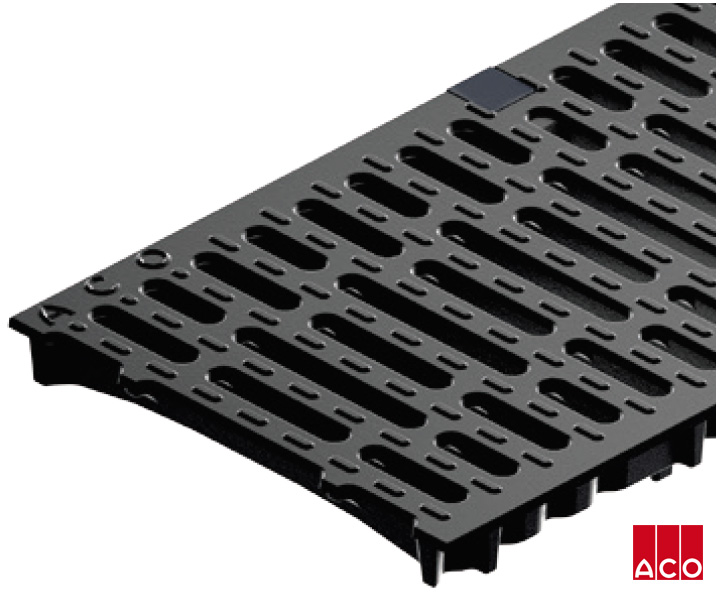

 | Iron Slotted | 100mm 200mm 300mm |   |
| • Alternate slots making a lazy S pattern • Wide slotted openings • Compliant to AS 1428.1 Clause 4.4 (b) with the dominant direction of travel parallel to the grate’s length • Load rated to Class D (AS 3996) | |||

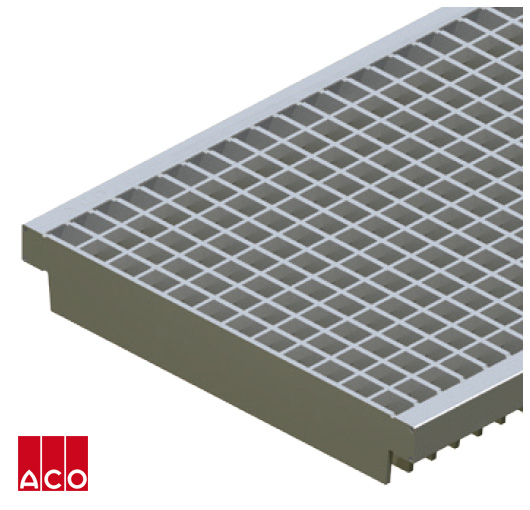

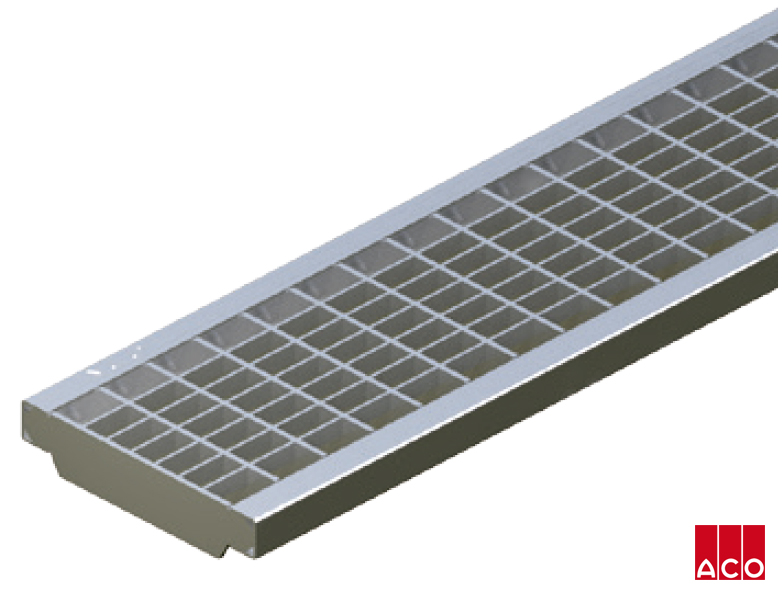

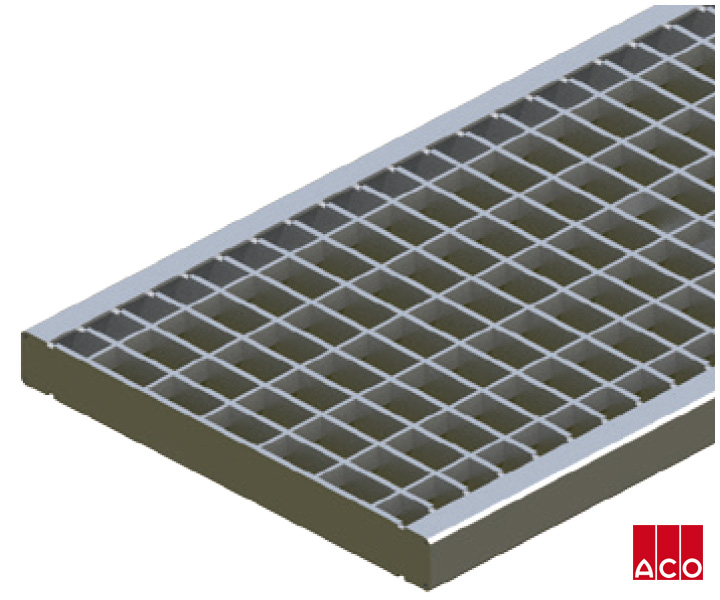

 | Steel Mesh | 100mm 200mm 300mm |  |
| • Constant mesh design • Large rectangular openings • Load rated to Class D (AS 3996) | |||
 | Steel Transverse | 200mm 300mm |  |
| • Traditional bar grate design • Large rectangular openings • Load rated to Class B (AS 3996) | |||
System Layout
KlassikDrain System Layout (click to enlarge)
KlassikDrain K100 / KS100
Grates
| LOAD CLASS A – AS 3996 – 10kN – approximate wheel load 330kg | 1 Compliant when the dominant direction of travel is parallel to the grate’s length 2 Compliant when the dominant direction of travel is perpendicular to the grate’s length |
| K100 / KS100 / H100K / H100KS Grates (to suit 100mm channels) | Length (mm) | Part No. |  |  |  |  | Spec Info | Check Water Intake | |
|---|---|---|---|---|---|---|---|---|---|

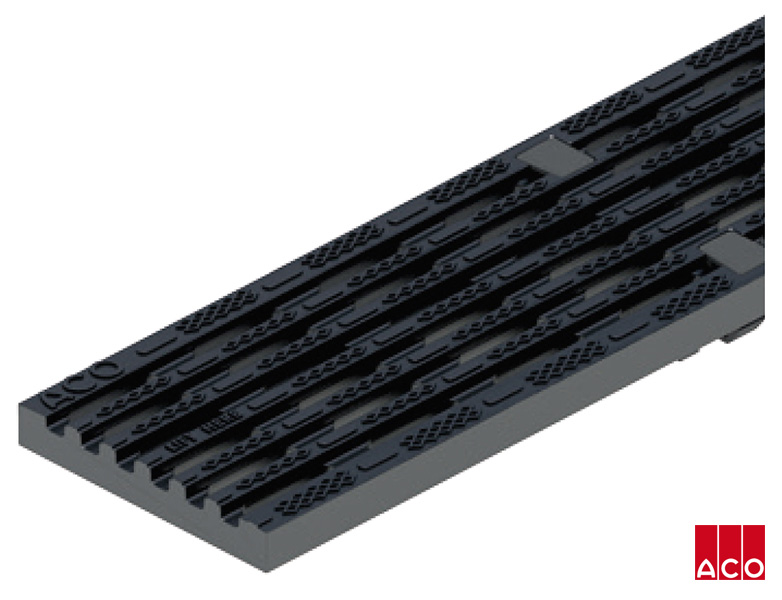

| Plastic Intercept Heelsafe® Anti-Slip | |||||||||
 | Type 494D Black polypropylene | 500 | 142459 |  |  |  |  |  |  |
| Type 495D Grey polypropylene | 500 | 142460 |  |  |  |  |  |  | |
| Steel Slotted | |||||||||
 | Type 420D Galvanised | 1000 | 12610 |  |  |  |  |  |  |
| Type 421D Galvanised | 500 | 12611 |  |  |  |  |  |  | |
| Type 450D Grade 304 stainless | 1000 | 12640 |  |  |  |  |  |  | |
| Type 452D Grade 304 stainless | 500 | 12641 |  |  |  |  |  |  | |
| LOAD CLASS B – AS 3996 – 80kN – approximate wheel load 2,670kg | 1 Compliant when the dominant direction of travel is parallel to the grate’s length 2 Compliant when the dominant direction of travel is perpendicular to the grate’s length |
| K100 / KS100 / H100K / H100KS Grates (to suit 100mm channels) | Length (mm) | Part No. |  |  |  |  | Spec Info | Check Water Intake | |
|---|---|---|---|---|---|---|---|---|---|
| Stainless Wedgewire Heelsafe® Anti-Slip | |||||||||
 | Type 447D Grade 304 stainless | 1000 | 142215 |  |  |  |  |  |  |
| Type 448D Grade 304 stainless | 500 | 142216 |  |  |  |  |  |  | |
| Stainless 5 Star Heelsafe® Anti-Slip | |||||||||
 | Type 443D Grade 304 stainless | 1000 | 142217 |  |  |  |  |  |  |
| Type 444D Grade 304 stainless | 500 | 142218 |  |  |  |  |  |  | |

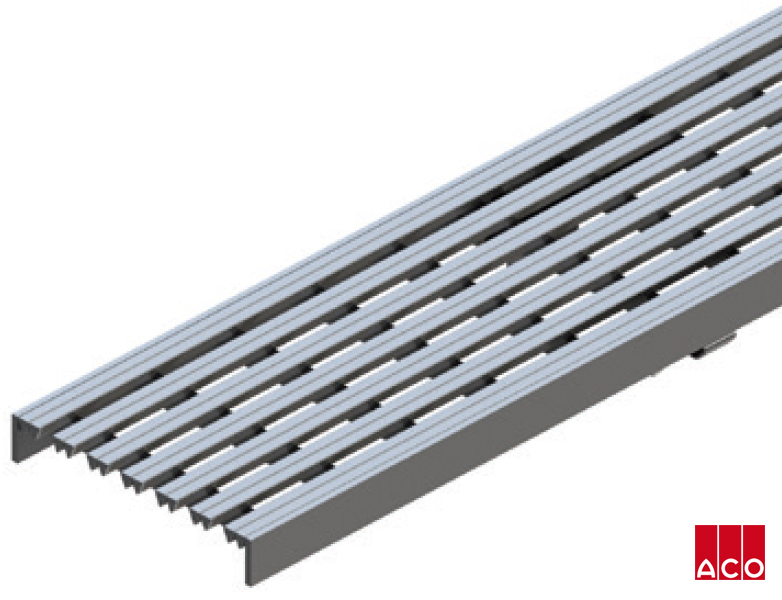

| Stainless Twinwire Heelsafe® Anti-Slip | |||||||||
 | Type 441D Grade 304 stainless | 1000 | 142556 |  |  |  |  |  |  |
| Type 442D Grade 304 stainless | 500 | 142557 |  |  |  |  |  |  | |
| Stainless Splitwire Heelsafe® Anti-Slip | |||||||||
 | Type 439D Grade 304 stainless | 1000 | 142569 |  |  |  |  |  |  |
| Type 440D Grade 304 stainless | 500 | 142570 |  |  |  |  |  |  | |

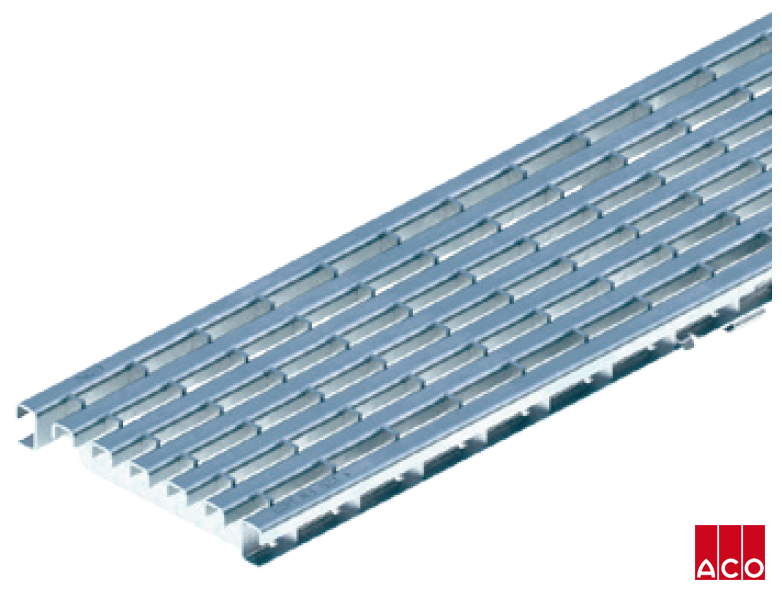

| Galvanised Longitudinal Heelsafe® Anti-Slip | |||||||||
 | Type 438D Galvanised | 1000 | 132555 |  |  |  |  |  |  |
| Type 437D Galvanised | 500 | 132550 |  |  |  |  |  |  | |
| LOAD CLASS D – AS 3996 – 240kN – approximate wheel load 8,000kg | 1 Compliant when the dominant direction of travel is parallel to the grate’s length 2 Compliant when the dominant direction of travel is perpendicular to the grate’s length |
| K100 / KS100 / H100K / H100KS Grates (to suit 100mm channels) | Length (mm) | Part No. |  |  |  |  | Spec Info | Check Water Intake | |
|---|---|---|---|---|---|---|---|---|---|

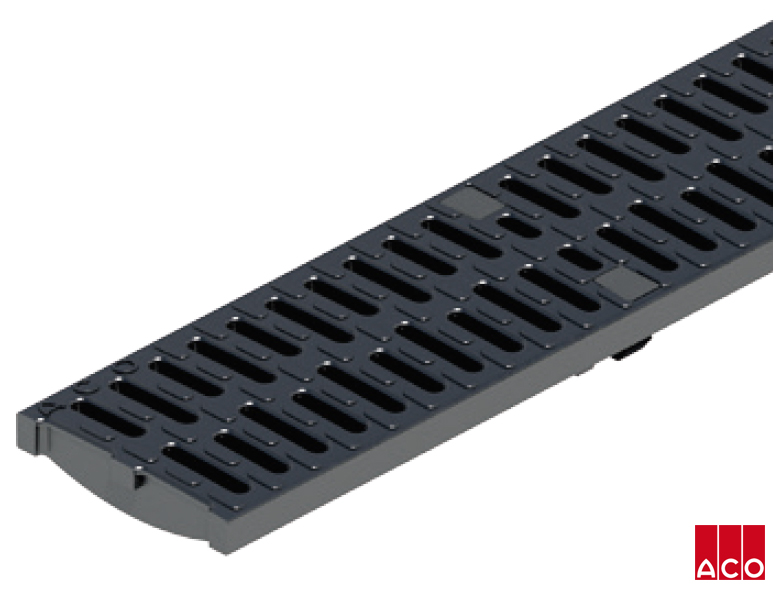

| Plastic Slotted Heelsafe® Anti-Slip | |||||||||
 | Type 492D Black polyamide | 500 | 132720 |  |  |  |  |  |  |

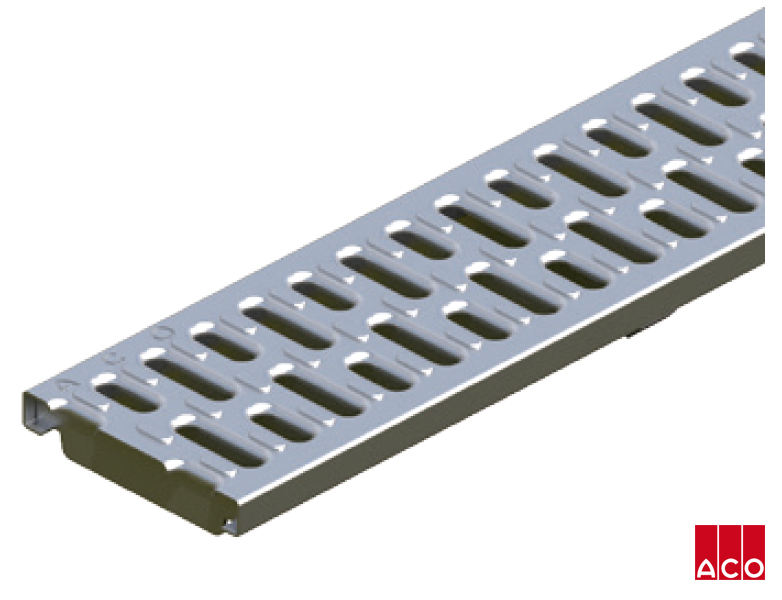

| Steel Slotted | |||||||||
 | Type 425D Galvanised | 1000 | 12614 |  |  |  |  |  |  |
| Type 426D Galvanised | 500 | 12615 |  |  |  |  |  |  | |
| Type 455D Grade 304 stainless | 1000 | 12644 |  |  |  |  |  |  | |
| Type 457D Grade 304 stainless | 500 | 12645 |  |  |  |  |  |  | |

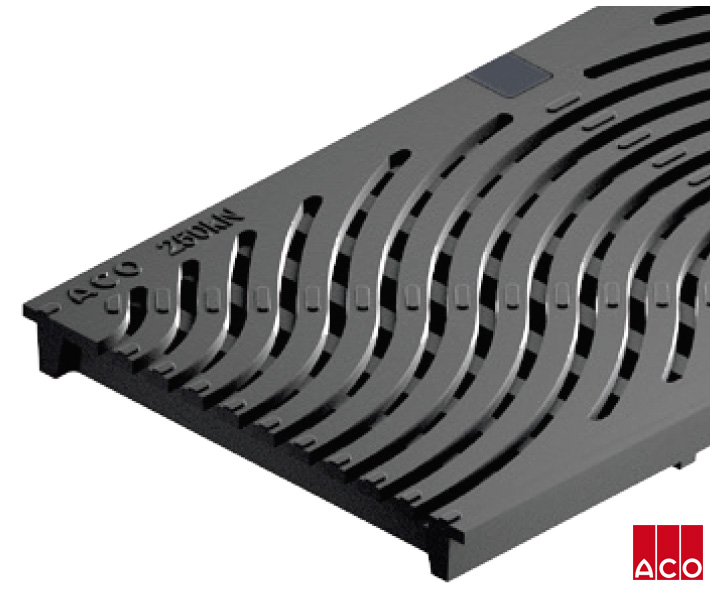

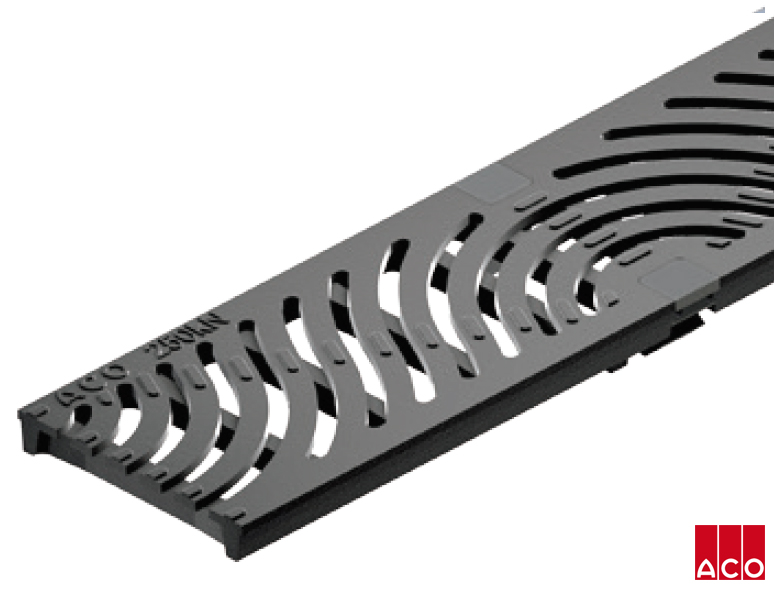

| Iron Wave Heelsafe® Anti-Slip | |||||||||
 | Type 480D Ductile iron | 500 | 142461 |  |  |  |  |  |  |

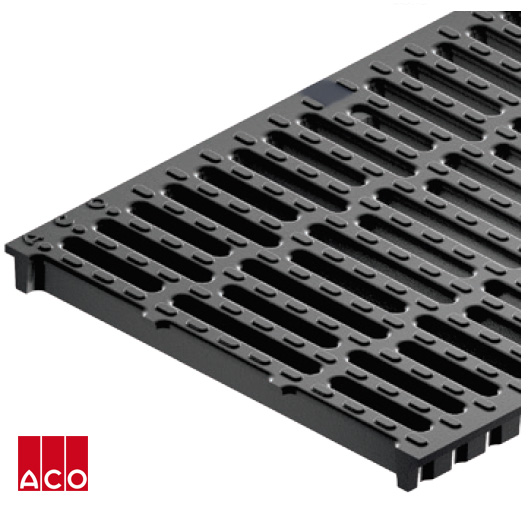

| Iron Slotted | |||||||||
 | Type 460D Ductile iron | 500 | 12670 |  |  |  |  |  |  |
| Iron Intercept Heelsafe® Anti-Slip | |||||||||
 | Type 476D Ductile iron | 500 | 142171 |  |  |  |  |  |  |

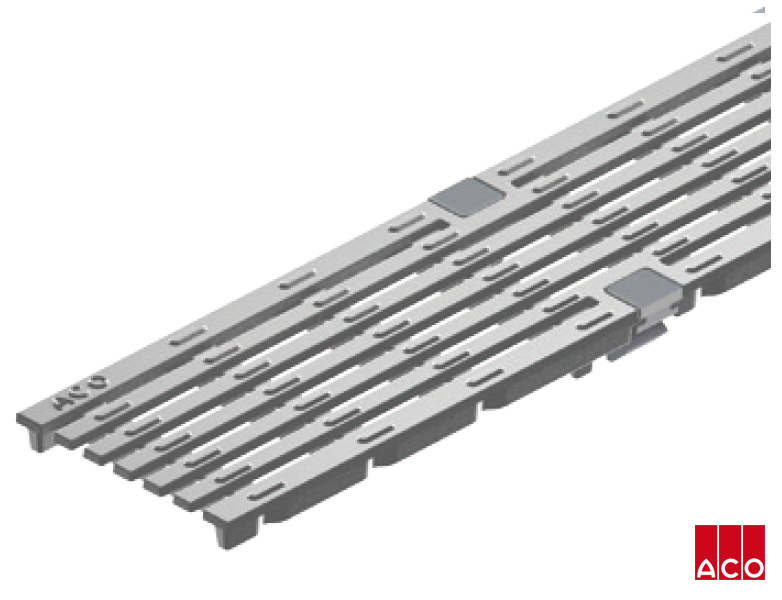

| Iron Galvanised Intercept Heelsafe® Anti-Slip | |||||||||
 | Type 475D Galvanised iron | 500 | 142172 |  |  |  |  |  |  |
| Stainless Longitudinal Heelsafe® Anti-Slip | |||||||||
 | Type 416D Grade 304 stainless | 1000 | 143135 |  |  |  |  |  |  |
| Type 417D Grade 304 stainless | 500 | 143134 |  |  |  |  |  |  | |
| Steel Mesh | |||||||||
 | Type 405Q Galvanised | 1000 | 142401 |  |  |  |  |  |  |
| Type 406Q Galvanised | 500 | 142402 |  |  |  |  |  |  | |
| Type 430Q Grade 304 stainless | 1000 | 142403 |  |  |  |  |  |  | |
| Type 431Q Grade 304 stainless | 500 | 142404 |  |  |  |  |  |  | |
Channel & Pits
Download K100 Spec Info
Download KS100 Spec Info| Channels | Part No. K100 | Part No. KS100 | Invert Depth Female (mm) | Invert Depth Male (mm) | Overall Depth Female (mm) | Overall Depth Male (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| K1-00 Neutral channel - (1m)1 | 144041 | 144441 | 100 | 100 | 120 | 120 | 12.7 |
| K1-1 Sloped channel - (1m) | 144001 | 144401 | 100 | 105 | 120 | 125 | 12.7 |
| K1-2 Sloped channel - (1m) | 144002 | 144402 | 105 | 110 | 125 | 130 | 13.1 |
| K1-3 Sloped channel - (1m) | 144003 | 144403 | 110 | 115 | 130 | 135 | 13.5 |
| K1-4 Sloped channel - (1m) | 144004 | 144404 | 115 | 120 | 135 | 140 | 13.8 |
| K1-5 Sloped channel - (1m)1 | 144005 | 144405 | 120 | 125 | 140 | 145 | 14.2 |
| K1-6 Sloped channel - (1m) | 144006 | 144406 | 125 | 130 | 145 | 150 | 14.6 |
| K1-7 Sloped channel - (1m) | 144007 | 144407 | 130 | 135 | 150 | 155 | 14.9 |
| K1-8 Sloped channel - (1m) | 144008 | 144408 | 135 | 140 | 155 | 160 | 15.3 |
| K1-9 Sloped channel - (1m) | 144009 | 144409 | 140 | 145 | 160 | 165 | 15.6 |
| K1-10 Sloped channel - (1m)1 | 144010 | 144410 | 145 | 150 | 165 | 170 | 16 |
| K1-010 Neutral channel - (1m)1 | 144043 | 144443 | 150 | 150 | 170 | 170 | 16 |
| K1-0103 Neutral channel - (0.5m)1 | 144044 | 144444 | 150 | 150 | 170 | 170 | 7.7 |
| K1-11 Sloped channel - (1m) | 144011 | 144411 | 150 | 155 | 170 | 175 | 16.4 |
| K1-12 Sloped channel - (1m) | 144012 | 144412 | 155 | 160 | 175 | 180 | 16.7 |
| K1-13 Sloped channel - (1m) | 144013 | 144413 | 160 | 165 | 180 | 185 | 17.1 |
| K1-14 Sloped channel - (1m) | 144014 | 144414 | 165 | 170 | 185 | 190 | 17.5 |
| K1-15 Sloped channel - (1m)1 | 144015 | 144415 | 170 | 175 | 190 | 195 | 17.8 |
| K1-16 Sloped channel - (1m) | 144016 | 144416 | 175 | 180 | 195 | 200 | 18.2 |
| K1-17 Sloped channel - (1m) | 144017 | 144417 | 180 | 185 | 200 | 205 | 18.6 |
| K1-18 Sloped channel - (1m) | 144018 | 144418 | 185 | 190 | 205 | 210 | 18.9 |
| K1-19 Sloped channel - (1m) | 144019 | 144419 | 190 | 195 | 210 | 215 | 19.3 |
| K1-20 Sloped channel - (1m)1 | 144020 | 144420 | 195 | 200 | 215 | 220 | 19.7 |
| K1-020 Neutral channel - (1m)1 | 144045 | 144445 | 200 | 200 | 220 | 220 | 19.7 |
| K1-0203 Neutral channel - (0.5m)1 | 144046 | 144446 | 200 | 200 | 220 | 220 | 9.3 |
| K1-21 Sloped channel - (1m) | 144021 | 144421 | 200 | 205 | 220 | 225 | 20 |
| K1-22 Sloped channel - (1m) | 144022 | 144422 | 205 | 210 | 225 | 230 | 20.4 |
| K1-23 Sloped channel - (1m) | 144023 | 144423 | 210 | 215 | 230 | 235 | 20.8 |
| K1-24 Sloped channel - (1m) | 144024 | 144424 | 215 | 220 | 235 | 240 | 21.1 |
| K1-25 Sloped channel - (1m)1 | 144025 | 144425 | 220 | 225 | 240 | 245 | 21.5 |
| K1-26 Sloped channel - (1m) | 144026 | 144426 | 225 | 230 | 245 | 250 | 21.9 |
| K1-27 Sloped channel - (1m) | 144027 | 144427 | 230 | 235 | 250 | 255 | 22.2 |
| K1-28 Sloped channel - (1m) | 144028 | 144428 | 235 | 240 | 255 | 260 | 22.6 |
| K1-29 Sloped channel - (1m) | 144029 | 144429 | 240 | 245 | 260 | 265 | 23 |
| K1-30 Sloped channel - (1m)1 | 144030 | 144430 | 245 | 250 | 265 | 270 | 23.3 |
| K1-030 Neutral channel - (1m)1 | 144047 | 144447 | 250 | 250 | 270 | 270 | 23.3 |
| K1-0303 Neutral channel - (0.5m)1 | 144048 | 144448 | 250 | 250 | 270 | 270 | 10.9 |
| K1-31 Sloped channel - (1m) | 144031 | 144431 | 250 | 255 | 270 | 275 | 23.7 |
| K1-32 Sloped channel - (1m) | 144032 | 144432 | 255 | 260 | 275 | 280 | 24 |
| K1-33 Sloped channel - (1m) | 144033 | 144433 | 260 | 265 | 280 | 285 | 24.4 |
| K1-34 Sloped channel - (1m) | 144034 | 144434 | 265 | 270 | 285 | 290 | 24.8 |
| K1-35 Sloped channel - (1m)1 | 144035 | 144435 | 270 | 275 | 290 | 295 | 25.1 |
| K1-36 Sloped channel - (1m) | 144036 | 144436 | 275 | 280 | 295 | 300 | 25.5 |
| K1-37 Sloped channel - (1m) | 144037 | 144437 | 280 | 285 | 300 | 305 | 25.9 |
| K1-38 Sloped channel - (1m) | 144038 | 144438 | 285 | 290 | 305 | 310 | 26.3 |
| K1-39 Sloped channel - (1m) | 144039 | 144439 | 290 | 295 | 310 | 315 | 26.6 |
| K1-40 Sloped channel - (1m)1 | 144040 | 144440 | 295 | 300 | 315 | 320 | 27 |
| K1-040 Neutral channel - (1m)1 | 144049 | 144449 | 300 | 300 | 320 | 320 | 27 |
| K1-0403 Neutral channel - (0.5m)1 | 144050 | 144450 | 300 | 300 | 320 | 320 | 12.5 |
| K1-900 In-line pit (0.5m) | 142838 | 142839 | 565 | 565 | 585 | 585 | 29.5 |
| K1-901 In-line pit (0.5m) | 141817 | 141818 | - | - | 723 | 723 | 23.9 |
| Type 901 In-line plastic rubbish basket | 01498 | 01498 | - | - | - | - | 0.5 |
Notes:
1. This channel offers bottom knockout feature; K100 - 100mm round & 150mm oval.
2. In-line pit assembly (polymer concrete top with galvanised (G)/stainless (S) steel edge rail and plastic base). Select appropriate grate to suit.
Accessories
| Accessories | Part No. | Overall Depth | Weight (kg) | JPG |
|---|---|---|---|---|
| End cap for K100/KS100 channels | 96822 | 315 | 0.2 |  |
| Debris strainer for 100mm knockout | 93488 | - | 0.1 |  |
| Installation device for K100/KS100 channels | 97477 | - | 0.3 | |
| Grate removal tool | 01318 | - | 0.1 |
NOTES:
Closing cap - Fits all channels. Manufactured from grey ABS to complement edge rail. Guides aid cutting to correct height. 100mm bell end connection. Seal using PVC-ABS cement.
Installation device - for more information, click here
Installation files
| System | AS 3996 | Grass haunch to top | Pavers pavers to edge | Pavers haunch to top | Asphalt sloped haunch | Asphalt haunch to top | Concrete haunch to top | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K100 (Gal rail) | Class A-B |  |  |  |  |  |  |  |  | ||||
| K100 (Gal rail) | Class C-D |  |  |  |  |  |  |  |  |  |  | ||
| KS100 (S/S rail) | Class A-B |  |  |  |  |  |  |  |  | ||||
| KS100 (S/S rail) | Class C-D |  |  |  |  |  |  |  |  |  |  | ||
KlassikDrain K200 / KS200
Grates
LOAD CLASS B – AS 3996 – 80kN – approximate wheel load 2,670kg
| K200 / KS200 / H200K / H200KS Grates (to suit 200mm channels) | Length (mm) | Part No. |  |  |  |  | Spec Info | Check Water Intake | |
|---|---|---|---|---|---|---|---|---|---|

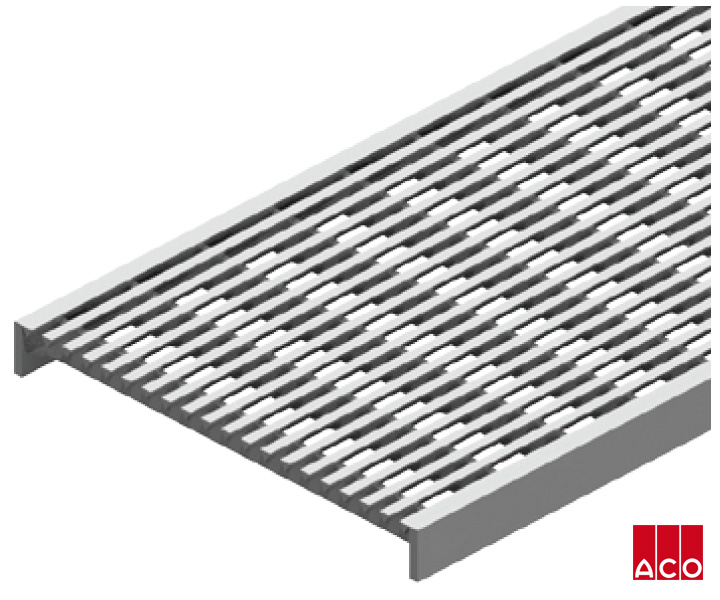

| Stainless Wedgewire Heelsafe® Anti-Slip | |||||||||
 | Type 647D Grade 304 stainless | 1000 | 142219 |  |  |  |  |  |  |
| Type 648D Grade 304 stainless | 500 | 142220 |  |  |  |  |  |  | |

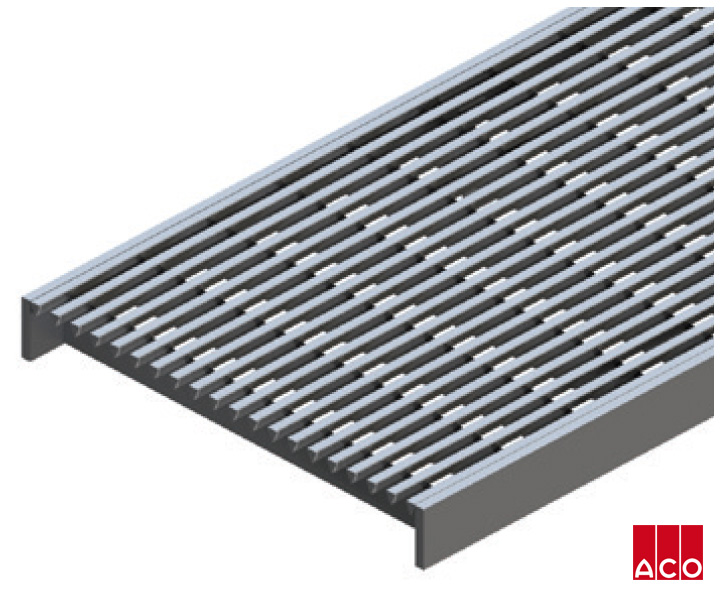

| Stainless 5 Star Heelsafe® Anti-Slip | |||||||||
 | Type 643D Grade 304 stainless | 1000 | 142221 |  |  |  |  |  |  |
| Type 644D Grade 304 stainless | 500 | 142222 |  |  |  |  |  |  | |
| Stainless Twinwire Heelsafe® Anti-Slip | |||||||||
 | Type 641D Grade 304 stainless | 1000 | 142558 |  |  |  |  |  |  |
| Type 642D Grade 304 stainless | 500 | 142559 |  |  |  |  |  |  | |

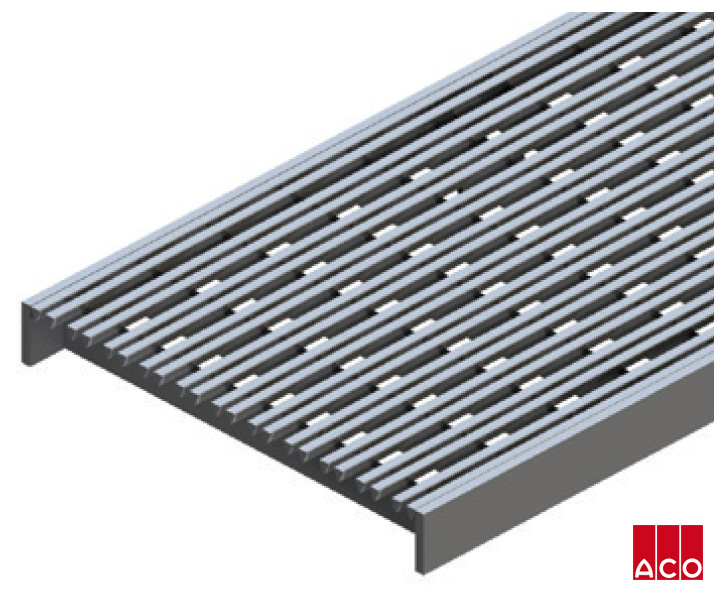

| Stainless Splitwire Heelsafe® Anti-Slip | |||||||||
 | Type 639D Grade 304 stainless | 1000 | 142571 |  |  |  |  |  |  |
| Type 640D Grade 304 stainless | 500 | 142572 |  |  |  |  |  |  | |

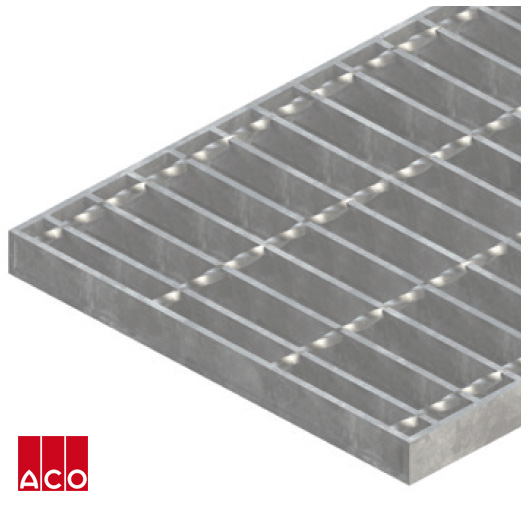

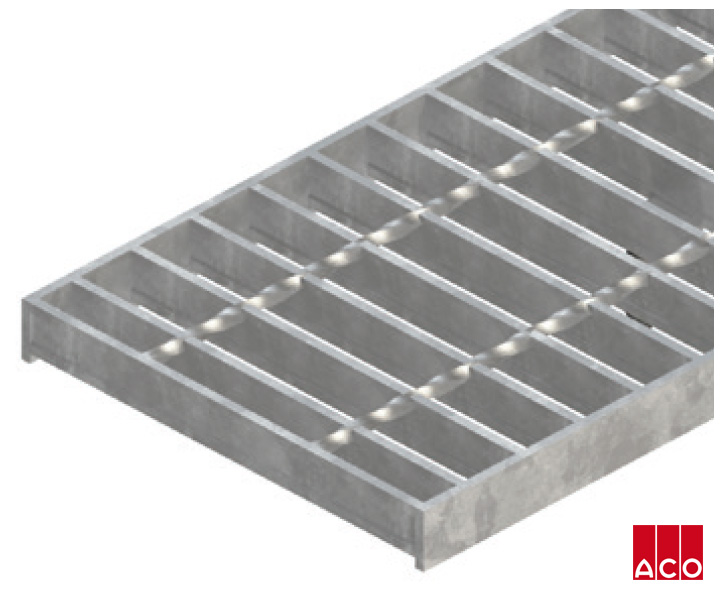

| Galvanised Transverse | |||||||||
 | Type 607Q Galvanised | 1000 | 142411 |  |  |  |  |  |  |
| Type 608Q Galvanised | 500 | 142412 |  |  |  |  |  |  | |
| LOAD CLASS D – AS 3996 – 240kN – approximate wheel load 8,000kg | 1 Compliant when the dominant direction of travel is parallel to the grate’s length |
| K200 / KS200 / H200K / H200KS Grates (to suit 200mm channels) | Length (mm) | Part No. |  |  |  |  | Spec Info | Check Water Intake | |
|---|---|---|---|---|---|---|---|---|---|
| Iron Wave Heelsafe® Anti-Slip | |||||||||
 | Type 680D Ductile iron | 500 | 142462 |  |  |  |  |  |  |
| Iron Slotted | |||||||||
 | Type 660D Ductile iron | 500 | 142177 |  |  |  |  |  |  |
| Iron Intercept Heelsafe® Anti-Slip | |||||||||
 | Type 676D Ductile iron | 500 | 142173 |  |  |  |  |  |  |

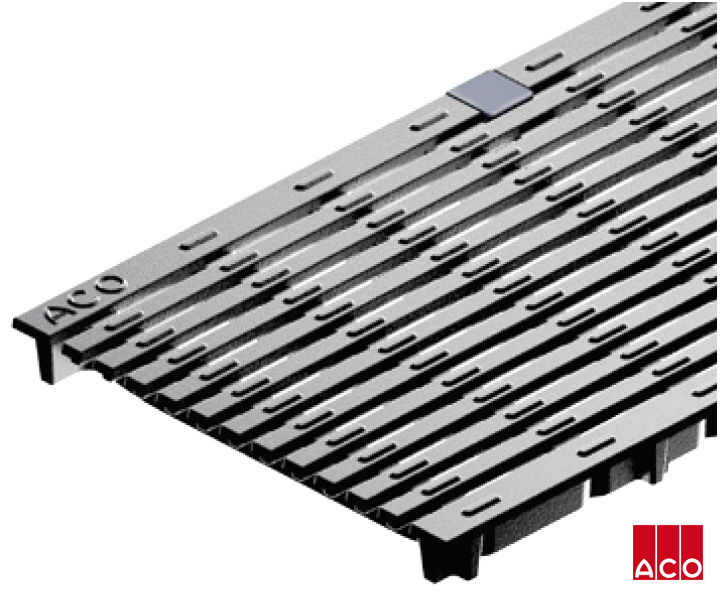

| Iron Galvanised Intercept Heelsafe® Anti-Slip | |||||||||
 | Type 675D Galvanised iron | 500 | 142174 |  |  |  |  |  |  |
| Stainless Longitudinal Heelsafe® Anti-Slip | |||||||||
 | Type 616D Grade 304 stainless | 1000 | 143137 |  |  |  |  |  |  |
| Type 617D Grade 304 stainless | 500 | 143136 |  |  |  |  |  |  | |
| Steel Mesh | |||||||||
 | Type 605Q Galvanised | 1000 | 142405 |  |  |  |  |  |  |
| Type 606Q Galvanised | 500 | 142406 |  |  |  |  |  |  | |
| Type 630Q Grade 304 stainless | 1000 | 142407 |  |  |  |  |  |  | |
| Type 631Q Grade 304 stainless | 500 | 142408 |  |  |  |  |  |  | |
Channel & Pits
Download K200 Spec Info
Download KS200 Spec Info| Channels | Part No. K200 | Part No. KS200 | Invert Depth Female (mm) | Invert Depth Male (mm) | Overall Depth Female (mm) | Overall Depth Male (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| K2-00 Neutral channel - (1m)1 | 145041 | 145441 | 200 | 200 | 225 | 225 | 37.9 |
| K2-1 Sloped channel - (1m) | 145001 | 145401 | 200 | 205 | 225 | 230 | 37.9 |
| K2-2 Sloped channel - (1m) | 145002 | 145402 | 205 | 210 | 230 | 235 | 38.4 |
| K2-3 Sloped channel - (1m) | 145003 | 145403 | 210 | 215 | 235 | 240 | 38.9 |
| K2-4 Sloped channel - (1m) | 145004 | 145404 | 215 | 220 | 240 | 245 | 39.4 |
| K2-5 Sloped channel - (1m)1 | 145005 | 145405 | 220 | 225 | 245 | 250 | 39.9 |
| K2-6 Sloped channel - (1m) | 145006 | 145406 | 225 | 230 | 250 | 255 | 40.4 |
| K2-7 Sloped channel - (1m) | 145007 | 145407 | 230 | 235 | 255 | 260 | 40.9 |
| K2-8 Sloped channel - (1m) | 145008 | 145408 | 235 | 240 | 260 | 265 | 41.4 |
| K2-9 Sloped channel - (1m) | 145009 | 145409 | 240 | 245 | 265 | 270 | 41.9 |
| K2-10 Sloped channel - (1m)1 | 145010 | 145410 | 245 | 250 | 270 | 275 | 42.4 |
| K2-010 Neutral channel - (1m)1 | 145043 | 145443 | 250 | 250 | 275 | 275 | 42.4 |
| K2-0103 Neutral channel - (0.5m)1 | 145044 | 145444 | 250 | 250 | 275 | 275 | 25.4 |
| K2-11 Sloped channel - (1m) | 145011 | 145411 | 250 | 255 | 275 | 280 | 42.9 |
| K2-12 Sloped channel - (1m) | 145012 | 145412 | 255 | 260 | 280 | 285 | 43.4 |
| K2-13 Sloped channel - (1m) | 145013 | 145413 | 260 | 265 | 285 | 290 | 43.9 |
| K2-14 Sloped channel - (1m) | 145014 | 145414 | 265 | 270 | 290 | 295 | 44.4 |
| K2-15 Sloped channel - (1m)1 | 145015 | 145415 | 270 | 275 | 295 | 300 | 44.9 |
| K2-16 Sloped channel - (1m) | 145016 | 145416 | 275 | 280 | 300 | 305 | 45.4 |
| K2-17 Sloped channel - (1m) | 145017 | 145417 | 280 | 285 | 305 | 310 | 45.9 |
| K2-18 Sloped channel - (1m) | 145018 | 145418 | 285 | 290 | 310 | 315 | 46.4 |
| K2-19 Sloped channel - (1m) | 145019 | 145419 | 290 | 295 | 315 | 320 | 46.9 |
| K2-20 Sloped channel - (1m)1 | 145020 | 145420 | 295 | 300 | 320 | 325 | 47.4 |
| K2-020 Neutral channel - (1m)1 | 145045 | 145445 | 300 | 300 | 325 | 325 | 47.4 |
| K2-0203 Neutral channel - (0.5m)1 | 145046 | 145446 | 300 | 300 | 325 | 325 | 29.0 |
| K2-21 Sloped channel - (1m) | 145021 | 145421 | 300 | 305 | 325 | 330 | 47.9 |
| K2-22 Sloped channel - (1m) | 145022 | 145422 | 305 | 310 | 330 | 335 | 48.4 |
| K2-23 Sloped channel - (1m) | 145023 | 145423 | 310 | 315 | 335 | 340 | 48.9 |
| K2-24 Sloped channel - (1m) | 145024 | 145424 | 315 | 320 | 340 | 345 | 49.4 |
| K2-25 Sloped channel - (1m)1 | 145025 | 145425 | 320 | 325 | 345 | 350 | 49.9 |
| K2-26 Sloped channel - (1m) | 145026 | 145426 | 325 | 330 | 350 | 355 | 50.4 |
| K2-27 Sloped channel - (1m) | 145027 | 145427 | 330 | 335 | 355 | 360 | 50.9 |
| K2-28 Sloped channel - (1m) | 145028 | 145428 | 335 | 340 | 360 | 365 | 51.4 |
| K2-29 Sloped channel - (1m) | 145029 | 145429 | 340 | 345 | 365 | 370 | 51.9 |
| K2-30 Sloped channel - (1m)1 | 145030 | 145430 | 345 | 350 | 370 | 375 | 52.4 |
| K2-030 Neutral channel - (1m)1 | 145047 | 145447 | 350 | 350 | 375 | 375 | 52.4 |
| K2-0303 Neutral channel - (0.5m)1 | 145048 | 145448 | 350 | 350 | 375 | 375 | 30.8 |
| K2-31 Sloped channel - (1m) | 145031 | 145431 | 350 | 355 | 375 | 380 | 52.9 |
| K2-32 Sloped channel - (1m) | 145032 | 145432 | 355 | 360 | 380 | 385 | 53.4 |
| K2-33 Sloped channel - (1m) | 145033 | 145433 | 360 | 365 | 385 | 390 | 53.9 |
| K2-34 Sloped channel - (1m) | 145034 | 145434 | 365 | 370 | 390 | 395 | 54.4 |
| K2-35 Sloped channel - (1m)1 | 145035 | 145435 | 370 | 375 | 395 | 400 | 54.9 |
| K2-36 Sloped channel - (1m) | 145036 | 145436 | 375 | 380 | 400 | 405 | 55.4 |
| K2-37 Sloped channel - (1m) | 145037 | 145437 | 380 | 385 | 405 | 410 | 55.9 |
| K2-38 Sloped channel - (1m) | 145038 | 145438 | 385 | 390 | 410 | 415 | 56.4 |
| K2-39 Sloped channel - (1m) | 145039 | 145439 | 390 | 395 | 415 | 420 | 56.9 |
| K2-40 Sloped channel - (1m)1 | 145040 | 145440 | 395 | 400 | 420 | 425 | 57.4 |
| K2-040 Neutral channel - (1m)1 | 145049 | 145449 | 400 | 400 | 425 | 425 | 57.4 |
| K2-0403 Neutral channel - (0.5m)1 | 145050 | 145450 | 400 | 400 | 425 | 425 | 34.9 |
| K2-902 In-line pit (0.5m) | 141819 | 141820 | - | - | 843 | 843 | 30.8 |
| Type 902 In-line plastic rubbish basket | 13999 | 13999 | - | - | - | - | 0.5 |
Notes:
1. This channel offers bottom knockout feature; K200 - 100mm & 150mm round.
2. In-line pit assembly (polymer concrete top with galvanised (G)/stainless (S) steel edge rail and plastic base). Select appropriate grate to suit
Accessories
| Accessories | Part No. | Overall Depth | Weight (kg) | JPG |
|---|---|---|---|---|
| End cap for K200/KS200 channels | 96821 | 420 | 0.6 |  |
| Debris strainer for 100mm knockout | 93488 | - | 0.1 | |
| Installation device for K200/KS200 channels | 97478 | - | 1.8 | |
| Grate removal tool | 01318 | - | 0.1 |
NOTES:
Closing cap - Fits all channels. Manufactured from grey ABS to complement edge rail. Guides aid cutting to correct height. 200mm bell end connection. Seal using PVC-ABS cement.
Installation device - for more information, click here
Installation files
| System | AS 3996 | Grass haunch to top | Pavers pavers to edge | Pavers haunch to top | Asphalt sloped haunch | Asphalt haunch to top | Concrete haunch to top | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K200 (Gal rail) | Class A-B |  |  |  |  |  |  |  |  | ||||
| K200 (Gal rail) | Class C-D |  |  |  |  |  |  |  |  |  |  | ||
| KS200 (S/S rail) | Class A-B |  |  |  |  |  |  |  |  | ||||
| KS200 (S/S rail) | Class C-D |  |  |  |  |  |  |  |  |  |  | ||
KlassikDrain K300 / KS300
Grates
LOAD CLASS B – AS 3996 – 80kN – approximate wheel load 2,670kg
| K300 / KS300 / H300K / H300KS Grates (to suit 300mm channels) | Length (mm) | Part No. |  |  |  |  | Spec Info | Check Water Intake | |
|---|---|---|---|---|---|---|---|---|---|
| Stainless Wedgewire Heelsafe® Anti-Slip | |||||||||
 | Type 847D Grade 304 stainless | 1000 | 142223 |  |  |  |  |  |  |
| Type 848D Grade 304 stainless | 500 | 142224 |  |  |  |  |  |  | |
| Stainless 5 Star Heelsafe® Anti-Slip | |||||||||
 | Type 843D Grade 304 stainless | 1000 | 142225 |  |  |  |  |  |  |
| Type 844D Grade 304 stainless | 500 | 142226 |  |  |  |  |  |  | |
| Stainless Twinwire Heelsafe® Anti-Slip | |||||||||
 | Type 841D Grade 304 stainless | 1000 | 142560 |  |  |  |  |  |  |
| Type 842D Grade 304 stainless | 500 | 142561 |  |  |  |  |  |  | |
| Stainless Splitwire Heelsafe® Anti-Slip | |||||||||
 | Type 839D Grade 304 stainless | 1000 | 142573 |  |  |  |  |  |  |
| Type 840D Grade 304 stainless | 500 | 142574 |  |  |  |  |  |  | |
| Galvanised Transverse | |||||||||
 | Type 807Q Galvanised | 1000 | 142413 |  |  |  |  |  |  |
| Type 808Q Galvanised | 500 | 142414 |  |  |  |  |  |  | |
| LOAD CLASS D – AS 3996 – 240kN – approximate wheel load 8,000kg | 1 Compliant when the dominant direction of travel is parallel to the grate’s length |
| K300 / KS300 / H300K / H300KS Grates (to suit 300mm channels) | Length (mm) | Part No. |  |  |  |  | Spec Info | Check Water Intake | |
|---|---|---|---|---|---|---|---|---|---|
| Iron Wave Heelsafe® Anti-Slip | |||||||||
 | Type 880D Ductile iron | 500 | 142463 |  |  |  |  |  |  |
| Iron Slotted | |||||||||
 | Type 860D Ductile iron | 500 | 13870 |  |  |  |  |  |  |
| Iron Intercept Heelsafe® Anti-Slip | |||||||||
 | Type 876D Ductile iron | 500 | 142175 |  |  |  |  |  |  |
| Iron Galvanised Intercept Heelsafe® Anti-Slip | |||||||||
 | Type 875D Galvanised iron | 500 | 142176 |  |  |  |  |  |  |
| Stainless Longitudinal Heelsafe® Anti-Slip | |||||||||
 | Type 816D Grade 304 stainless | 500 | 143138 |  |  |  |  |  |  |
| Steel Mesh | |||||||||
 | Type 805Q Galvanised | 500 | 142409 |  |  |  |  |  |  |
| Type 830Q Grade 304 stainless | 500 | 142410 |  |  |  |  |  |  | |
Channel & Pits
Download K300 Spec Info
Download KS300 Spec Info| Channels | Part No. K300 | Part No. KS300 | Invert Depth Female (mm) | Invert Depth Male (mm) | Overall Depth Female (mm) | Overall Depth Male (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| K3-00 Neutral channel - (1m)1 | 146041 | 146441 | 300 | 300 | 325 | 325 | 60.1 |
| K3-1 Sloped channel - (1m) | 146001 | 146401 | 300 | 305 | 325 | 330 | 60.1 |
| K3-2 Sloped channel - (1m) | 146002 | 146402 | 305 | 310 | 330 | 335 | 60.7 |
| K3-3 Sloped channel - (1m) | 146003 | 146403 | 310 | 315 | 335 | 340 | 61.2 |
| K3-4 Sloped channel - (1m) | 146004 | 146404 | 315 | 320 | 340 | 345 | 61.8 |
| K3-5 Sloped channel - (1m)1 | 146005 | 146405 | 320 | 325 | 345 | 350 | 62.3 |
| K3-6 Sloped channel - (1m) | 146006 | 146406 | 325 | 330 | 350 | 355 | 62.9 |
| K3-7 Sloped channel - (1m) | 146007 | 146407 | 330 | 335 | 355 | 360 | 63.4 |
| K3-8 Sloped channel - (1m) | 146008 | 146408 | 335 | 340 | 360 | 365 | 64.0 |
| K3-9 Sloped channel - (1m) | 146009 | 146409 | 340 | 345 | 365 | 370 | 64.5 |
| K3-10 Sloped channel - (1m)1 | 146010 | 146410 | 345 | 350 | 370 | 375 | 65.0 |
| K3-010 Neutral channel - (1m)1 | 146043 | 146443 | 350 | 350 | 375 | 375 | 65.0 |
| K3-0103 Neutral channel - (0.5m)1 | 146044 | 146444 | 350 | 350 | 375 | 375 | 34.2 |
| K3-11 Sloped channel - (1m) | 146011 | 146411 | 350 | 355 | 375 | 380 | 65.6 |
| K3-12 Sloped channel - (1m) | 146012 | 146412 | 355 | 360 | 380 | 385 | 66.1 |
| K3-13 Sloped channel - (1m) | 146013 | 146413 | 360 | 365 | 385 | 390 | 66.7 |
| K3-14 Sloped channel - (1m) | 146014 | 146414 | 365 | 370 | 390 | 395 | 67.2 |
| K3-15 Sloped channel - (1m)1 | 146015 | 146415 | 370 | 375 | 395 | 400 | 67.8 |
| K3-16 Sloped channel - (1m) | 146016 | 146416 | 375 | 380 | 400 | 405 | 68.3 |
| K3-17 Sloped channel - (1m) | 146017 | 146417 | 380 | 385 | 405 | 410 | 68.9 |
| K3-18 Sloped channel - (1m) | 146018 | 146418 | 385 | 390 | 410 | 415 | 69.4 |
| K3-19 Sloped channel - (1m) | 146019 | 146419 | 390 | 395 | 415 | 420 | 69.9 |
| K3-20 Sloped channel - (1m)1 | 146020 | 146420 | 395 | 400 | 420 | 425 | 70.5 |
| K3-020 Neutral channel - (1m)1 | 146045 | 146445 | 400 | 400 | 425 | 425 | 70.5 |
| K3-0203 Neutral channel - (0.5m)1 | 146046 | 146446 | 400 | 400 | 425 | 425 | 37.3 |
| K3-21 Sloped channel - (1m) | 146021 | 146421 | 400 | 405 | 425 | 430 | 71.1 |
| K3-22 Sloped channel - (1m) | 146022 | 146422 | 405 | 410 | 430 | 435 | 71.6 |
| K3-23 Sloped channel - (1m) | 146023 | 146423 | 410 | 415 | 435 | 440 | 72.2 |
| K3-24 Sloped channel - (1m) | 146024 | 146424 | 415 | 420 | 440 | 445 | 72.7 |
| K3-25 Sloped channel - (1m)1 | 146025 | 146425 | 420 | 425 | 445 | 450 | 73.3 |
| K3-26 Sloped channel - (1m) | 146026 | 146426 | 425 | 430 | 450 | 455 | 73.8 |
| K3-27 Sloped channel - (1m) | 146027 | 146427 | 430 | 435 | 455 | 460 | 74.3 |
| K3-28 Sloped channel - (1m) | 146028 | 146428 | 435 | 440 | 460 | 465 | 74.9 |
| K3-29 Sloped channel - (1m) | 146029 | 146429 | 440 | 445 | 465 | 470 | 75.4 |
| K3-30 Sloped channel - (1m)1 | 146030 | 146430 | 445 | 450 | 470 | 475 | 76.0 |
| K3-030 Neutral channel - (1m)1 | 146047 | 146447 | 450 | 450 | 475 | 475 | 76.0 |
| K3-0303 Neutral channel - (0.5m)1 | 146048 | 146448 | 450 | 450 | 475 | 475 | 40.6 |
| K3-31 Sloped channel - (1m) | 146031 | 146431 | 450 | 455 | 475 | 480 | 76.5 |
| K3-32 Sloped channel - (1m) | 146032 | 146432 | 455 | 460 | 480 | 485 | 77.1 |
| K3-33 Sloped channel - (1m) | 146033 | 146433 | 460 | 465 | 485 | 490 | 77.6 |
| K3-34 Sloped channel - (1m) | 146034 | 146434 | 465 | 470 | 490 | 495 | 78.2 |
| K3-35 Sloped channel - (1m)1 | 146035 | 146435 | 470 | 475 | 495 | 500 | 78.7 |
| K3-36 Sloped channel - (1m) | 146036 | 146436 | 475 | 480 | 500 | 505 | 79.2 |
| K3-37 Sloped channel - (1m) | 146037 | 146437 | 480 | 485 | 505 | 510 | 79.8 |
| K3-38 Sloped channel - (1m) | 146038 | 146438 | 485 | 490 | 510 | 515 | 80.3 |
| K3-39 Sloped channel - (1m) | 146039 | 146439 | 490 | 495 | 515 | 520 | 80.9 |
| K3-40 Sloped channel - (1m)1 | 146040 | 146440 | 495 | 500 | 520 | 525 | 81.4 |
| K3-040 Neutral channel - (1m)1 | 146049 | 146449 | 500 | 500 | 525 | 525 | 81.4 |
| K3-0403 Neutral channel - (0.5m)1 | 146050 | 146450 | 500 | 500 | 525 | 525 | 44.3 |
| K3-903 In-line pit (0.5m) | 141821 | 141822 | - | - | 956 | 956 | 39.9 |
| Type 903 In-line plastic rubbish basket | 98653 | 98653 | - | - | - | - | 1.6 |
Notes:
1. This channel offers bottom knockout feature; K300 - 300mm & 150mm round.
2. In-line pit assembly (polymer concrete top with galvanised (G)/stainless (S) steel edge rail and plastic base). Select appropriate grate to suit
Accessories
| Accessories | Part No. | Overall Depth | Weight (kg) | JPG |
|---|---|---|---|---|
| End cap | 96826 | 520 | 1.1 |  |
| Installation device | 97479 | - | 2.2 | |
| Grate removal tool | 01318 | - | 0.1 |
NOTES:
Closing cap - Fits all channels. Manufactured from grey ABS to complement edge rail. Guides aid cutting to correct height. 200mm bell end connection. Seal using PVC-ABS cement.
Installation device - for more information, click here
Installation files
| System | AS 3996 | Grass haunch to top | Pavers pavers to edge | Pavers haunch to top | Asphalt sloped haunch | Asphalt haunch to top | Concrete haunch to top | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K300 (Gal rail) | Class A-B |  |  |  |  |  |  |  |  | ||||
| K300 (Gal rail) | Class C-D |  |  |  |  |  |  |  |  |  |  | ||
| KS300 (S/S rail) | Class A-B |  |  |  |  |  |  |  |  | ||||
| KS300 (S/S rail) | Class C-D |  |  |  |  |  |  |  |  |  |  | ||
KlassikDrain K50 / KS50
Grates
| K50 / KS50 Grates (to suit 50mm channels) | Length (mm) | Part No. |  |  |  |  | Spec Info | Check Water Intake | |
|---|---|---|---|---|---|---|---|---|---|
| LOAD CLASS B - AS 3996 - 80kN - approximate wheel load 2,670 kg | |||||||||
| Stainless 5 Star Heelsafe® Anti-Slip | |||||||||
 | Type 243D Stainless 5 Star Heelsafe® Anti-Slip | 1000 | 142227 |  |  |  |  |  |  |
| LOAD CLASS D - AS 3996 - 240kN - approximate wheel load 8,000 kg | |||||||||
| Iron Intercept Heelsafe® Anti-Slip | |||||||||
 | Type 276D Iron Intercept Heelsafe® Anti-Slip | 500 | 138107 |  |  |  |  |  |  |
Channel & Accessories
Download K50/KS50 Spec Info| Channels | Part No. K50 | Part No. KS50 | Invert Depth Female (mm) | Invert Depth Male (mm) | Overall Depth Female (mm) | Overall Depth Male (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| Neutral channel - (1m) | 04071 | 06750 | 74 | 74 | 89 | 89 | 8.2 |
| K50 End cap | 95403 | 95403 | - | - | 89 | 89 | 0.1 |
Note:
1. Preformed 38mm diameter drill-out to underside of channel provides a flow rate of 0.89 L/s.
2. MiniKlassik does not fit with any ACO pit. Discharge is via vertical outlet only.
Installation files
| System | AS 3996 | Grass haunch to top | Pavers pavers to edge | Pavers haunch to top | Asphalt sloped haunch | Asphalt haunch to top | Concrete haunch to top | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K50 | Class A-B |  |  |  |  | - | - |  |  | - | - |  |  |
| Class C-D |  |  | - | - |  |  | - | - |  |  | |||
| KS50 | Class A-B |  |  |  |  | - | - |  |  | - | - |  |  |
| Class C-D |  |  | - | - |  |  | - | - |  |  | |||
