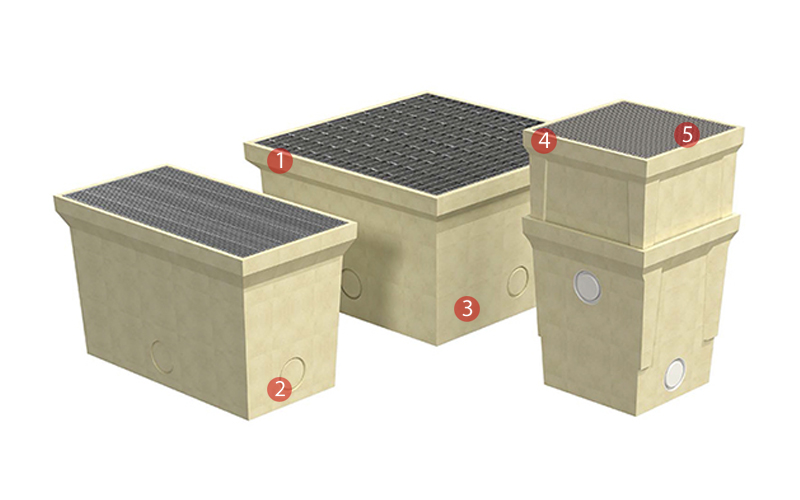

Grated pits - features & benefits
Grated pits - product details
| Type | Standard Part No. | Locking Part No. | Nom. Wheel Load (kg) | Slot Size (mm) | Intake Area (mm2) | Weight (kg) | Spec Info |  |
|---|---|---|---|---|---|---|---|---|
| Type 33 | 141808 | 142073 | 330 | 20 x 6 | 42,540 | 3.1 |  |  |
| Type 45 | 141809 | 142074 | 330 | 20 x 6 | 96,460 | 8.5 |  | |
| Type 66 | 141810 | 142075 | 330 | 20 x 6 | 175,680 | 13.7 |  | |
| Type 66H | 141810 | 142075 | 330 | 20 x 6 | 175,680 | 13.7 |  | |
| Type 95 | 141811 | 142076 | 330 | 20 x 6 | 198,000 | 15.6 |  | |
| Type 96 | 141812 | 142077 | 330 | 20 x 6 | 269,175 | 24.7 |  | |
| Type 99 | 141813 | 142078 | 330 | 20 x 6 | 400,950 | 34.6 |  |
Notes:
1. Locking grate includes bar and brackets
2. Stainless steel grade 304
3. Meets ASME A112.6.3 Section 7.12 (American high heel standard)
| Type | Standard Part No. | Locking Part No. | Nom. Wheel Load (kg) | Slot Size (mm) | Intake Area (mm2) | Weight (kg) | Spec Info |  |
|---|---|---|---|---|---|---|---|---|
| Type 33 | 90038 | 78678 | 2670 | 95 x 7.5 | 50,760 | 5.9 |  |  Wheelchair and walking cane compliant when the dominant direction of travel is perpendicular to the slot length. |
| Type 45 | 90045 | 78679 | 2670 | 95 x 7.5 | 116,875 | 27.8 |  | |
| Type 66 | 90054 | 78680 | 2670 | 95 x 7.5 | 209,510 | 48.0 |  | |
| Type 66H | 90054 | 78680 | 2670 | 95 x 7.5 | 209,510 | 48.0 |  | |
| Type 95 | 90067 | 78681 | 2670 | 95 x 7.5 | 233,750 | 56.0 |  | |
| Type 96 | 90076 | 78683 | 2670 | 95 x 7.5 | 326,895 | 73.4 |  | |
| Type 992 | 90083 | 78684 | 2670 | 95 x 7.5 | 467,500 | 112.0 |  |
Notes:
1. Locking grate includes bar and brackets
2. Type 99 grate comprised of 2 parts
3. Meets ASME A112.6.3 Section 7.12 (American high heel standard)
| Type | Standard Part No. | Locking Part No. | Nom. Wheel Load (kg) | Slot Size (mm) | Intake Area (mm2) | Weight (kg) | Spec Info | |
|---|---|---|---|---|---|---|---|---|
| Type 33 | 78665 | 78677 | 2670 | 95 x 25 | 70,500 | 3.4 |  |  |
| Type 45 | 78682 | 78699 | 2670 | 95 x 35 | 170,000 | 9.8 |  | |
| Type 66 | 78710 | 78724 | 2670 | 95 x 35 | 307,090 | 16.1 |  | |
| Type 66H | 78710 | 78724 | 2670 | 95 x 35 | 307,090 | 16.1 |  | |
| Type 95 | 78731 | 78725 | 2670 | 95 x 35 | 342,125 | 18.5 |  | |
| Type 96 | 78748 | 78726 | 2670 | 95 x 25 | 456,475 | 30.0 |  | |
| Type 99 | 78755 | 78727 | 2670 | 95 x 35 | 700,800 | 52.5 |  | |
| Type 45 | 77624 | 77639 | 5000 | 95 x 35 | 170,000 | 13.9 |  | |
| Type 66 | 77645 | 77657 | 5000 | 95 x 35 | 307,090 | 24.3 |  | |
| Type 66H | 77645 | 77657 | 5000 | 95 x 35 | 307,090 | 24.3 |  | |
| Type 95 | 77662 | 77658 | 5000 | 95 x 35 | 342,125 | 27.9 |  | |
| Type 96 | 74478 | 77659 | 5000 | 95 x 25 | 456,475 | 36.0 |  | |
| Type 99 | 77683 | 77660 | 5000 | 95 x 25 | 683,280 | 66.7 |  |
Notes:
1. Locking grate includes bar and brackets
| Drain Pit Data | Part No. | Nominal Dimensions l x w x d (mm) | Weight (kg) | Drawing | Drawing DWG | Spec Info |
|---|---|---|---|---|---|---|
| Type 33 Pit | 77003 | 300 x 300 x 450 | 19 |  |  |  |
| Type 45 Pit | 77024 | 450 x 450 x 600 | 45 |  |  |  |
| Type 66 Pit | 77076 | 600 x 600 x 600 | 62 |  |  |  |
| Type 66H Pit | 77010 | 600 x 600 x 900 | 116 |  |  |  |
| Type 95 Pit | 77055 | 900 x 500 x 600 | 84 |  |  |  |
| Type 96 Pit | 74432 | 900 x 600 x 600 | 95 |  |  |  |
| Type 99 Pit | 76999 | 900 x 900 x 500 | 147 |  |  |  |
| Riser Data (300mm deep) | Part No. | Weight (kg) | Drawing | Drawing DWG | Spec Info |
|---|---|---|---|---|---|
| Type 33 Riser | 77031 | 15 |  |  |  |
| Type 45 Riser | 77048 | 26 |  |  |  |
| Type 66 Riser | 77062 | 37 |  |  |  |
| Type 66H Riser | 77062 | 37 |  |  |  |
| Type 95 Riser | 77093 | 45 |  |  |  |
| Type 96 Riser | 74447 | 55 |  |  |  |
| Type 99 Riser | 77089 | 67 |  |  |  |
| System | Nominal wheel load | Grass haunch to top | Pavers paver to edge | Pavers haunch to top | Asphalt haunch to top | Concrete haunch to top | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pit with Stainless 5 Star Heelsafe® Anti-Slip grate | 330kg |  |  |  |  |  |  |  |  | ||

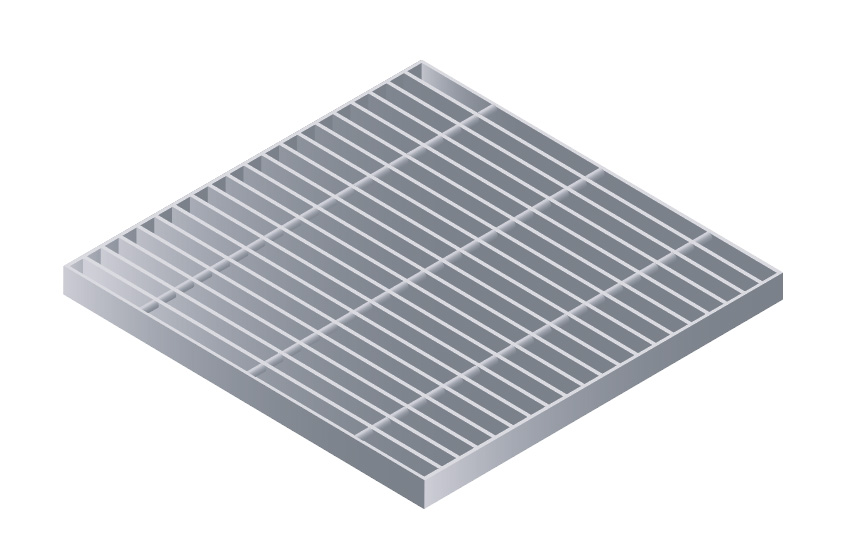

| Pit with Galvanised Heelguard grate or Galvanised Transverse grate | 2670kg |  |  |  |  |  |  |  |  | ||
| Pit with Galvanised Transverse grate | 5000kg |  |  |  |  |  |  | ||||
Your Ultimate Destination for Pit Drain & Polymer Concrete Drainage Pits
When it comes to advanced and reliable water management solutions, ACO is your trusted partner. Specialising in a range of pit drain solutions, we offer an array of drainage pit sizes and polymer concrete drainage pits tailored to meet the unique requirements of your project.
Why Opt for ACO Drainage Pits?
- Quality Assurance: Our polymer concrete drainage pits are manufactured from high-quality materials, guaranteeing durability and long-lasting performance.
- Adapted Solutions: With a wide variety of drainage pit sizes, we ensure that you’ll find the perfect fit for your specific water management needs.
- Robust Durability: Our pit drain solutions are engineered to withstand the test of time, offering exceptional longevity and minimal maintenance.
Pit Drain Systems
Our pit drain solutions are meticulously designed to efficiently capture and manage water, making them the cornerstone of any advanced drainage system.
Drainage Pit Sizes
Choosing the right size is crucial for effective drainage. We offer a range of drainage pit sizes to accommodate various flow rates and site specifications.
Polymer Concrete Drainage Pits
Our polymer concrete drainage pits are the epitome of durability and reliability. Crafted to provide robust and steadfast water management, these pits are ideal for challenging environments.
Elevate Your Water Management with ACO Drain: High Quality & Efficient Drainage Pits
When you opt for ACO Drain, you’re choosing more than just a drainage solution—you’re investing in unparalleled quality, customisation, and longevity. From our expansive selection of drainage pit sizes to our robust polymer concrete drainage pits, we set the gold standard in water management. Don’t settle for less; make ACO your premier choice for pit drain solutions that not only meet but exceed your highest expectations. Your journey toward unmatched water management excellence starts and ends with ACO.
Effective Stormwater Drainage Pit Solutions
In Australia, managing stormwater effectively is crucial due to a variable climate and periodic heavy rainfall. ACO stormwater drainage pit solutions play a pivotal role in mitigating flood risks by efficiently channelling excess water away from urban and residential areas.
A stormwater drainage pit acts as a collection point for rainwater and runoff. These pits are strategically placed to capture and redirect water before it accumulates, preventing potential flooding. ACO’s stormwater drain grates feature innovative Heelsafe® Antislip frates, providing safe pedestrian passage while maximising drainage efficiency.
A stormwater retention pit is another essential component, designed to temporarily hold excess water during peak rainfall periods. ACO’s solutions are tailored to handle varying intensities of rainfall, from light to heavy tropical downpours.
With sustainable manufacturing practices and a commitment to environmental responsibility, each ACO stormwater drainage pit is engineered in Australia.
Drainage Pits – Frequently Asked Questions
What types of materials are used in ACO Drain’s pit drain systems?
Our pit drain systems are crafted from various high-quality materials, with polymer concrete drainage pits being a popular choice for their durability and long-lasting performance. We use industry-leading materials to ensure each pit drain system meets our rigorous quality standards.
How do I choose the right drainage pit size for my project?
Selecting the right drainage pit size is crucial for effective water management. We offer a wide range of drainage pit sizes to cater for different flow rates and site conditions. Our team of experts is available to assist you in determining the most suitable size for your specific needs.
Are ACO Polymer concrete drainage pits suitable for commercial applications?
Absolutely, our polymer concrete drainage pits are engineered to withstand heavy loads and high flow rates, making them suitable for both residential and commercial applications. Their robust construction ensures minimal maintenance, offering a reliable and long-lasting solution for complex water management challenges.
Explore Our Range of Products
When it comes to drainage solutions, ACO offers a comprehensive portfolio that addresses all your water management needs. Dive in to explore our top-of-the-line offerings:
Grated Drainage
Our grated drainage systems offer superior performance in capturing and redirecting water. Designed for durability and functionality, they’re an ideal choice for a wide range of applications.
Slot Drains
Engineered for both aesthetic appeal and operational efficiency, our slot drains seamlessly integrate into any landscape, offering an elegant yet effective water management solution.
Drain Covers
Choose from our robust and versatile drain covers to add an extra layer of safety and aesthetics to your drainage systems. Available in multiple designs and materials to fit your specific needs.
Trench Drains
Trench Drains from ACO provide an efficient, long-lasting solution for managing large volumes of water. With various sizing options, they’re suitable for both residential and commercial projects.
Discover your perfect drainage solution with ACO today. Feel free to contact us to discuss your specific needs.
